DL716

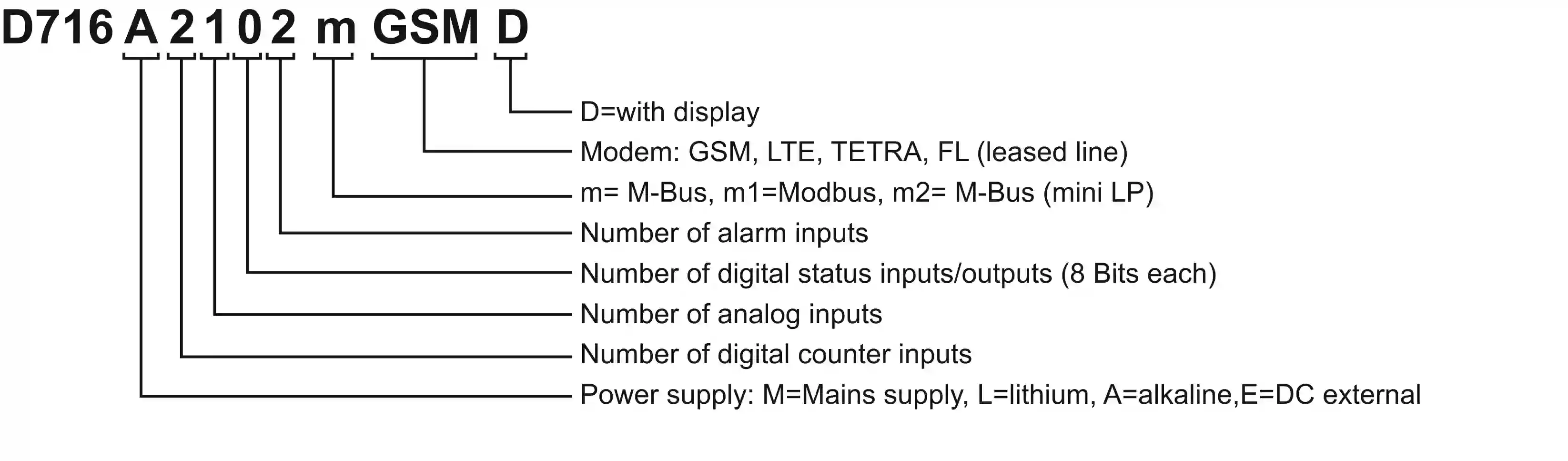

General Information
- Maximum possible measurement channels and inputs:
- 6 analog measurement channels (mA / Volt / PT1000)
- 6 digital counter inputs (expandable up to 32, optional)
- 3 digital alarm/status inputs
- M-Bus (or mini="LowPower") or Modbus interface
- Sensors (e.g.):
- Level, pressure, temperature, humidity
- pH value, conductivity, chemical parameters
- Precipitation, fl ow and status
- Memory capacity: ≥ 2,040,000 values
- Serial-/USB interface for PC
- Battery life: up to 10 years with daily measured value transmission (GSM)
- Protection class IP65 (IP68 optional)
Options
- Pulse doubler for digital counter inputs:
- Potential-free outputs for forwarding to additional acquisition devices
- Built-in modem (GSM / GPRS / UMTS / LTE, TETRA, leased line …)
- Transmission of measured values and alarm notifications to:
- Control rooms and internet servers
- Fax machines
- GSM mobile phones or landline phones
- Antennas:
- Rod antenna (direct or via cable)
- Directional antenna
- Power supply depending on model:
- 2 × battery pack (alkaline or lithium)
- External via solar panel and buffer battery
- External via 12 VDC, 24 VDC, 110 VAC, 230 VAC and buffer battery
- Connection sockets: RD24 for measuring cables
- Switching outputs: 1, 2, 4 or 8
- Backlit LCD display for current measured values
- Optional IP68
Specifications
- Waterproof, rugged aluminum housing (IP65)
- Up to 6 analog measurement channels for sensors (resolution: 0.025 %)
- Adjustable measuring interval from 32 Hz to 30 days
- Switched sensor supply (3 V ± 5 %, max. 10 mA load)
- Measuring ranges:
| Voltage: | 0–1 V | ||
| PT1000: | –40 to +100 ℃ | ||
| Current: | 0–±20 mA, 4–20 mA | ||
| Event: | e.g. reed contact, up to 1 event per second | ||
| Digital: | Low < 10 kΩ, High > 200 kΩ | ||
| Frequency: | 0.01 Hz to 6 MHz |
- Storage capacity: 4 GB to 32 GB (approx. 2,040,000 to 16,768,000 values)
- External power supply:
- Via solar panel or power supply with additional buffer battery
- Typical power reserve: approx. 1,000 transmissions and approx. 15,000 measurements
- Battery power supply:
- 2 separate battery packs with adjustable alarm
- Battery packs can be replaced individually and are discharged sequentially
- Display of the consumed battery pack available on the logger
- Dimensions: 300 mm × 200 mm × 150 mm (L × W × H)
Operating time
*The operating time is reduced when using the optional M-Bus or Modbus – depending on the measuring interval
Data logger with lithium battery
| *Measuring interval | ||||
|---|---|---|---|---|---|
| 1 minute | 5 minutes | 15 minutes | 60 minutes | |
every 15 minutes |
| 1 year | 1 year | 1 year | 1 year |
hourly |
| 2.5 years | 2.5 years | 2.5 years | 2.5 years |
every 6 hours |
| 6 years | 6 years | 6 years | 6 years |
daily | 10 years | 10 years | 10 years | 10 years | |
weekly | 10 years | 10 years | 10 years | 10 years | |
Data logger with alkaline battery
| *Measuring interval | ||||
|---|---|---|---|---|---|
| 1 minute | 5 minutes | 15 minutes | 60 minutes | |
every 15 minutes |
| 6 months | 6 months | 6 months | 6 months |
hourly |
| 1.5 years | 1.5 years | 1.5 years | 1.5 years |
every 6 hours |
| 3 years | 3 years | 3 years | 3 years |
daily | 4 years | 4 years | 4 years | 4 years | |
weekly | 5 years | 5 years | 5 years | 5 years | |
*The operating time is reduced when using the optional M-Bus or Modbus – depending on the measuring interval
Accessories
- Battery package alkaline type 30
- Battery package alkaline type 60
- Traditional battery
- Solarpanel
- Configuration cable "USB"
- Software DLBA 5
- Antennas
- Measuring cables & Adapters
- Sensors
