DL09-GSM / WM

{f:if(condition: '', then: '

', else: '

Discontinued Model

')} This device is no longer in production. {f:if(condition: '', then: '', else: 'This device is no longer in production.')} {f:if(condition: '', then: '', else: 'Successor')}

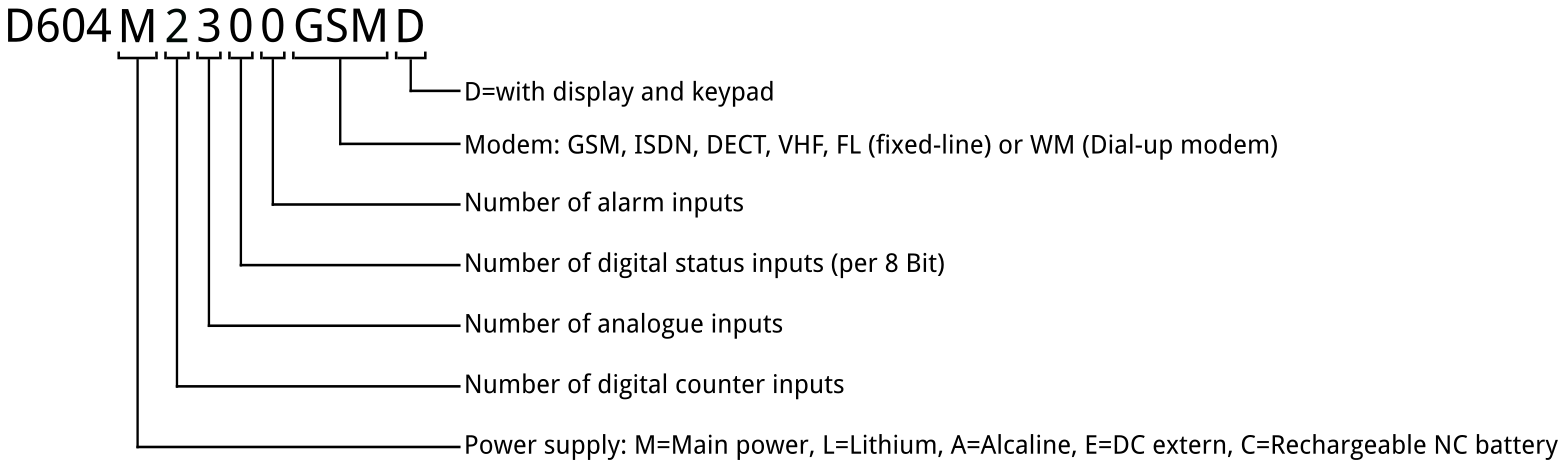

Features

Maximum number of measurement channels resp. inputs:
- 5 analogue measuring channels with 14 Bit resolution.
- 3, 6, 9 or 12 digital counter inputs.
- 24 digital status inputs.
- 3 alarm inputs.
Sensors (e.g.):
- Level, pressure, temperature.
- pH-value, conductivity, chemical values.
- Precipitation, flow and digital status.
Storage capacity up to approx. 2.040.000 values.
Serial interface for PC (optionally IrDA).
Power supply:
- Battery (Alcaline or Lithium).
- Rechargeable battery.
- External with 12 VDC, 24 VDC.
- External with 110 VAC, 230 VAC.
Up to 10 years battery operating time with daily transfer of measured values (GSM).
Protection up to IP68.

Options

Integrated modem (GSM, ISDN, DECT ...) to send measured values and alarm messages to:
- Central office.
- Fax.
- GSM mobile telephone or conventional telephone line.
GSM antennas:
- Rod aerial (direct or by cable).
- Directional antenna.
- Monitoring well cap with integrated antenna (vandalism protected).
1, 2, 4 or 8 outputs with relays.
Graphical LCD display with backlight and tactile keypad (8 keys).
Installation material for 4” monitoring well.
Connection to external DCF77 radio controlled clock.

Specifications

Waterproof robust aluminium housing (IP65 up to IP68).
Up to 5 differential analog measurement channels for sensors
Resolution: 0.0025 % (accuracy: 0.01 %).
Adjustable sampling frequency 1 second (0,1 second) up to 30 days.
Switched sensors powered by the logger (5 Volt ±5%, max. 10 mA load).
Storage capacity 512 up to 3072 kByte (approx. 340.000 up to 2.040.000 values).
Power supply from batteries, rechargeable batteries or main power.
Optionally integrated GSM mobile telephone.
Dimensions [mm]: 175 mm x 80 mm x 57 mm (L x W x H).
Measurement range:

Voltage:		±50mV, ±200mV, ±500mV, ±1V, ±2V, ±10V
Current:		0 - ±20mA, 4 - 20 mA
Event:		e.g. sealed contact up to 1 event per second
Digital:		0V ≤ low ≤ 1V, 4V ≤ high ≤ 5V
Frequency:		0,01 Hz up to 6 MHz
Period length:		up to 24 hours (Resolution 1 µs)

Operating time

Operating time without changing batteries**

GSM-transfer	Measurement cycle
	1 minute	5 minutes	15 minutes	60 minutes
none	1 year	4 years	9 years	10 years
1 x daily	1 year	4 years	7 years	10 years
1 x weekly	1 year	4 years	8 years	10 years
1 x monthly	1 year	4 years	9 years	10 years

** The lifetime arises as a result of the optionally available equiment with lithium batteries.
With according to the standard used alcaline batteries the indicated lifetime halves itself.

Operating time without charging batteries

GSM-transfer	Measurement cycle
	1 minute	5 minutes	15 minutes
none	50 days	3 months*	3 months*
1 x daily	45 days	3 months*	3 months*
1 x weekly	50 days	3 months*	3 months*
1 x monthly	50 days	3 months*	3 months*

* Limited by the self discharge of the internal NC batteries (with external rechargeable battery up to 1,5 years)
